This barometric sensor for drone and UAS applications offers more sensitivity in constant flight centered operations. Essential for seamless operation, these sensory solutions operate as both a temperature and air pressure sensor. In addition, its design guarantees high precision during temperature changes. As a result, this sensor for UAS applications is most suited for IoT wearable devices and mobile apps.
Once a subject of children’s games, it has become a growing sector. Unmanned Aerial Vehicles (UAVs), Unmanned Aerial Systems (UASs) and drones had become a staple of our times. From commercial payload deliveries, such as Amazon deliveries’ deployment to hundreds of US cities, to military and defense applications- these systems interact and react with the environments around them for optimal efficacy. One major issue of such devices is the positioning element. Not only where, but at which height the system was operating on.
In order to answer the need for a better, more precise, altitude monitor, E.D.E. Electronics LTD. is proud to present this miniaturized Digital Barometric Air Pressure Sensor. The brainchild of acoustics tech innovator SOUND COMPONENTS LIMITED, this Barometric sensor for drone and UAS operations was designed to operate not only as an air pressure sensor but also as a temperature sensor. Additionally, this sensor offers more delicate high accuracy and a low current consumption. Not to mention its temperature accuracy of 1°C differentiation.
Dubbed “PSALA-XS05”, this Barometric sensor solution provides less than 0.5 Pa/K pressure temperature sensitivity. Thus, this sensor is more tuned to the micro turbulations of keeping perfectly stabilized against emerging surrounding natural conditions. Furthermore, in terms of pressure sensor capacity, this barometric sensor for UAS solution’s typical pressure precision capacity, as part of high precision mode, stands at ± 0.06 hPa (or ±50 cm) variability.

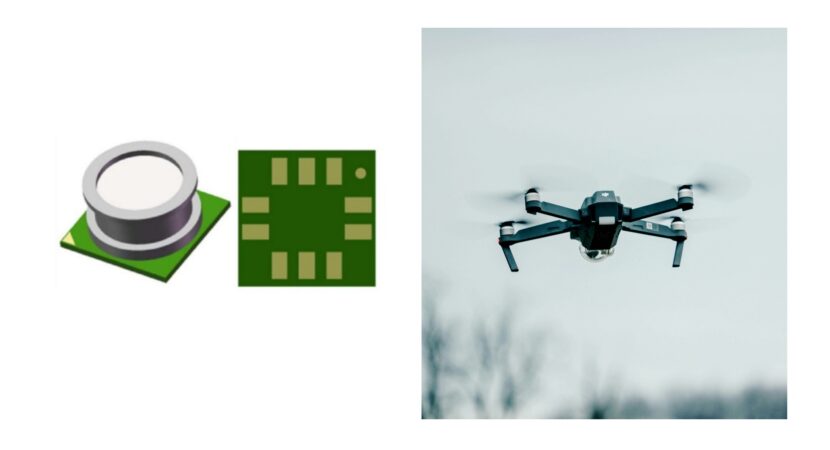

In continuation, this barometric sensor for drone operations offers the same market standards of temperature operational range varying from -20°C to 85°C. Not to mention, as the average current consumption stands at 60 ?A, Low power poised at 3 ?A and Standby just under 1?A-that its power management is also splendid. In addition, This sensor for UAS is Packaged in a slick 10-pin 3.55×3.55×1.4 mm Land Grid Array (LGA) module.
Barometric sensors are essential in unmanned flight operations, as they provide critical intel not only to the whereabouts of the system but also of real-time changes in environment that effect the operability of the system itself. Such data helps the system to automatically stabilize and to efficiently perform their duties.
